WiConnect FiberDirect

HLX-TGV – XGS-PON ONT with 10-Gigabit and 1-Gigabit LAN ports, 2 VoIP RJ11 ports

(20 customer reviews)

PRODUCT DESCRIPTION GPON Optical Network Termination products are designed for operators and service providers who seek advantage from the expanded capacity of a fiber access network. HLX-TGV is a XGS-PON ONT that acts as XGS-PON Home Gateway Unit and is designed to provide affordable access to FTTH networks. The products use a single fiber to…

Category:

Description

PRODUCT DESCRIPTION
GPON Optical Network Termination products are designed for operators and service providers who seek advantage from the expanded capacity of a fiber access network.

HLX-TGV is a XGS-PON ONT that acts as XGS-PON Home Gateway Unit and is designed to provide affordable access to FTTH networks. The products use a single fiber to connect individual houses and businesses to the network for broadband services up to 10-gigabit speeds.

All products within the GPON family comply with current ITU-T standards for 10-gigabit passive optical networks (XGS-PONs). The solution is designed to optimize the deployment and roll-out of the service provider. HLX-TGV design offers multi-interoperability with several OLT vendors. The ONT/ONU products are tested and have proven interoperability with most major GPON OLT Vendors.

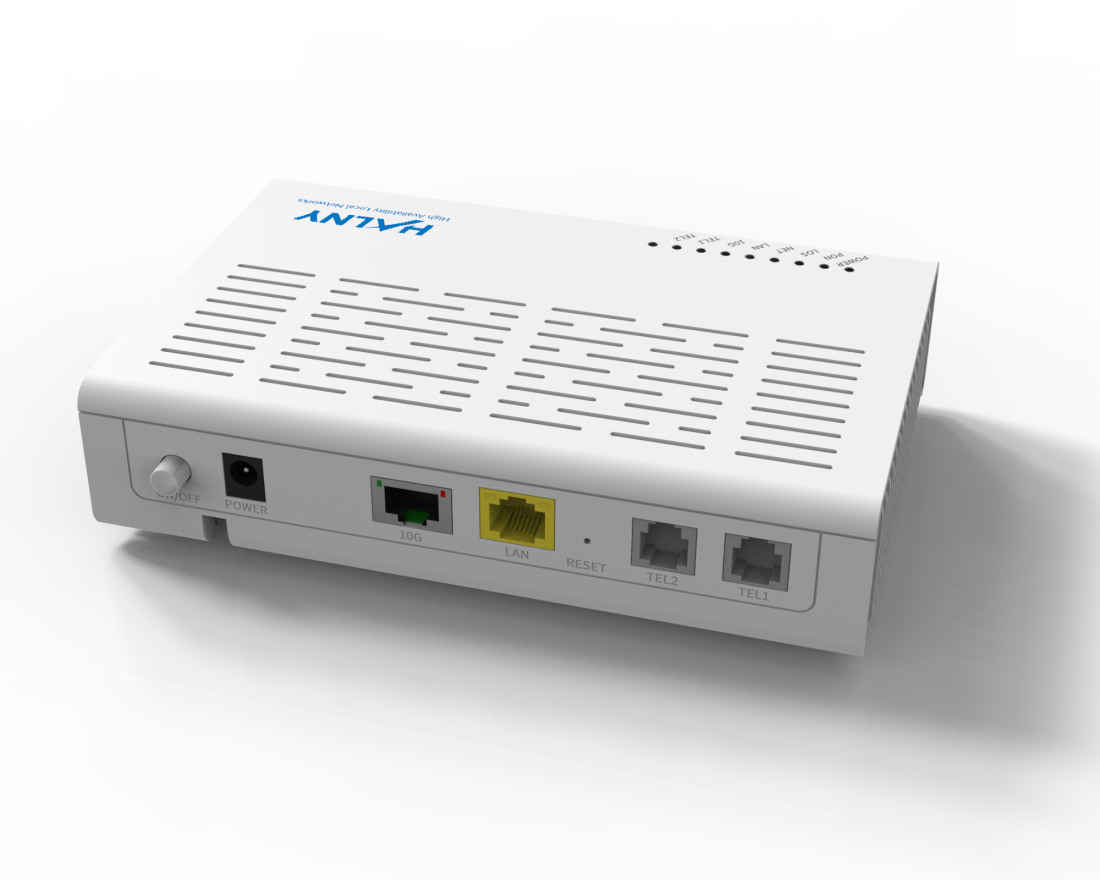

HALNy HLX-TGV provides one XGS-PON port (SC/APC type), 10-Gigabit and 1-Gigabit Ethernet ports. All units have Layer 3 (HGU / Router / NAT) and Layer 2 support.

HALNy specializes in cost-effective designs, and works closely with service providers to improve their business case through a comprehensive range of standard products, supporting the industry’s common demands. HALNy also provides custom designs and services to meet unique customer needs.

The network interface is compliant to ITU-T G.987.1 to provide 10 Gb/s downstream and 10 Gb/s upstream. LAN interface allow to provide 10-Gigabit service.

HARDWARE SPECIFICATION
WAN Port: XGS-PON N1 SC/APC 9.953Gbps Downstream 9.953Gbps Upstream Operating Temp: 0 ~ 45 C
GPON RX Input: -10 ~ -29 dBm Storage Temp: -20 ~ 70 C
GPON TX Output: 0.5 ~ 5 dBm Flash: Hold two software sets, for active and backup ONT firmware
LAN Ports: 1x port 1000/2500/5000/10000 Base-T (RJ45), 1x port 10/100/1000 Base-T (RJ45) LED: POWER, PON, LOS, Internet, LAN1-2, VoIP1-2
Power Supply: DC +12V 1.5A (feed via external AC/DC adapter) Buttons: ON/OFF, Reset
Device Dimension: 172*115*40mm (W*D*H)
GENERAL PRODUCT FEATURE
GPON: ITU-T G.988 / G.9807.1 L3: ONT can works as Residential Gateway (Home Gateway Unit: HGU) and in Bridge (SFU)
OMCI G.987 PPPoE Client
AES decryption NAT and PAT
Support for FEC (Forrward Error Correction) in both direction DHCP Server/Client/Relay
Dying Gasp / Power Off notification IGMP Proxy
Dynamic Bandwidth Allocation VPN Pass-through
Support for Multicast GEM UPnP
L2: 802.1D Bridge Port Forwarding
VLAN 802.1Q with 802.1p CoS IPv4/IPv6
IGMP Snooping v/1v2/v3 Provisioning: Easy to use provisioning for all services including PPPoE login, IPTV, Port Forrwarding, Logins etc
Jumbo Frame 2K on GPON WAN DOCSIS like provisioning over GPON/EPON
Rate-Limit (Traffic Limitation) TR-069
Managment: WEB SNMP
Remote Syslog OMCI
OMCI RestAPI / JSON

INTEROPERABILITY TEST REPORTS
ADTRAN DZS NOKIA (ALCATEL-LUCENT) ZTE
CISCO/ALTICE LAN FIBERHOME RAISECOM ZYXEL
CALIX HUAWEI ZHONE
We do our best to ensure interoperability works not matter of OLT software or hardware version. For details verification please check our knowledge base or contact with us on support@halny.com

ALTERNATIVE
This ONT can be used as alternative to below ONTs
Nokia (Alcatel-Lucent): HN8010TS, HN8145V Nokia: XS-250WX-A
DASAN Zhone Solution: H845X
ORDERING INFORMATION
HLX-TGV /
HLX-TGV-EU HALNY NETWORKS XGS-PON ONT 1-PORT LAN 10G, 1-PORT LAN 10/100/1000, 2XPOTS, B+ SC/APC, Router/Bridge, with European Power Adapter
HLX-TGV-US HALNY NETWORKS XGS-PON ONT 1-PORT LAN 10G, 1-PORT LAN 10/100/1000, 2XPOTS, B+ SC/APC, Router/Bridge, with North America Power Adapter
HLX-TGV-UK HALNY NETWORKS XGS-PON ONT 1-PORT LAN 10G, 1-PORT LAN 10/100/1000, 2XPOTS, B+ SC/APC, Router/Bridge, with United Kingdom Power Adapter
HLX-TGV-NOPS HALNY NETWORKS XGS-PON ONT 1-PORT LAN 10G, 1-PORT LAN 10/100/1000, 2XPOTS, B+ SC/APC, Router/Bridge, without Power Adapter
Please contact sales for detailed order information
