PRODUCT DESCRIPTION
GPON Optical Network Termination products are designed for operators and service providers who seek advantage from the expanded capacity of a fiber access network.

HL-4GMV2 is a GPON ONT that acts as GPON Home Gateway Unit and is designed to provide affordable access to FTTH networks. The products use a single fiber to connect individual houses and businesses to the network for broadband services up to gigabit speeds.

All products within the GPON family comply with current ITU-T standards for gigabit passive optical networks (GPONs). The solution is designed to optimize the deployment and roll-out of the service provider. HL-4GMV2 design guarantees multi-interoperability with number of OLT vendors. The ONT/ONU products are tested and have proven interoperability with most major GPON OLT Vendors.

HALNy HL-4GMV2 provides one GPON port, four Gigabit Ethernet ports, Dual-Band (2.4G and 5G) Wireless interface with two external antennas and two Voice FXS ports. This gives possibility to support full triple play services for high speed Internet access, IPTV and voice.

The flexible product design enables a variety of product features and available interfaces. All units have Layer 3 and Layer 2 support.

HALNy specializes in cost-effective designs, and works closely with service providers to improve their business case through a comprehensive range of standard products, supporting the industry’s common demands. HALNy also provides custom designs and services to meet unique customer needs.

The network interface is compliant to ITU-T G.984.5 to provide 2.5 Gb/s downstream and 1.25 Gb/s upstream. LAN interface allow to provide Gigabit service.

HARDWARE SPECIFICATION
WAN Port: GPON SC/APC B+ 2.488Gbps Downstream 1.244Gbps Upstream Phone: 2 FXS RJ11
GPON RX Input: -10 ~ -27 dBm Power Supply: DC +12V 1.5A (feed via external AC/DC adapter)
GPON TX Output: 0.5 ~ 5 dBm Maximum Power Consumption: 9W
LAN Ports: 4×10/100/1000 Base-T Auto-sensing, auto-detection MDI/ MDI-X Operating Temp: 0 ~ 45 C
Wireless: 2×2 802.11a/n/ac wave2 MU-MIMO Storage Temp: -20 ~ 70 C
2×2 802.11b/g/n MIMO Flash: Hold two software sets, for active and backup ONT firmware
External Dual Band LED: POWER, PON, LOS, Internet, LAN1-4, TEL1-2, WI-FI 2.4G ,WI-FI 5G
Antenna Gain 5dBi Buttons: ON/OFF, Reset, WPS, WLAN
max TxPower: 2.4Ghz 20dBm
5Ghz 23dBm Device Dimension: 185*152*36mm (W*D*H)

GENERAL PRODUCT FEATURE
GPON: ITU-T G.984.x and G.988 L3: ONT can works as Residential Gateway (Home Gateway Unit: HGU)
OMCI G.984.4 LAN port can be used as WAN
AES decryption NAT and PAT
Support for FEC (Forrward Error Correction) in both direction DHCP Server/Client/Relay
Dying Gasp / Power Off notification IGMP Proxy
DBA Dynamic Bandwidth Allocation VPN Pass-through
Support for Multicast GEM UPnP
L2: 802.1D Bridge Port Forrwarding
Rate-Limit (Traffic Limitation on WAN per CoS) PPPoE Client
VLAN 802.1Q with 802.1p CoS IPv4/IPv6
IGMP Snooping v/1v2/v3 Provisioning: Easy to use provisioning for all services including PPPoE login, IPTV, Port Forrwarding, Logins etc
Jumbo Frame 2K on GPON WAN DOCSIS like provisioning over GPON/EPON
Managment: WEB TR-069 CWMP
Remote Syslog SNMP
OMCI OMCI
VoIP: SIP RTP Wireless: WPA/WPA2 Personal
DTMF 4xSSID
FAX 2.4GHz: 300Mbps – 40Mhz
G.711-A/U, G.723, G.726 5Ghz: 867Mbps – 80Mhz
WPS
Operating Frequencies: 802.11b/g/n:2400-2485MHz
802.11a/n/ac:5150-5250MHz
Channel bandwidth 20M/40Hz
Maximum power
of the transmitter 2.4 GHz: up to 20 dBm
5 GHz: up to 23 dBm
Transmit power control

INTEROPERABILITY TEST REPORTS
ADTRAN DZS NOKIA (ALCATEL-LUCENT) ZTE
CISCO/ALTICE LAN FIBERHOME RAISECOM ZYXEL
CALIX HUAWEI ZHONE
We do our best to ensure interoperability works not matter of OLT software or hardware version. For details verification please check our knowledge base or contact with us on support@halny.com

ALTERNATIVE

This ONT can be used as alternative to below ONTs

Huawei: EG8145V5 Calix: 844G-2
Huawei: EG8245Q Fiberhome: AN5506-04-FA AN5506-04-FAT
Huawei: HG8245D Ubiquoss : C624WGB
Huawei: HG8245Q Raisecom: HT803G-W
Huawei: EG8247H DASAN Zhone Solution: H640GW H660GW
Nokia (Alcatel-Lucent): G-140W-ME DASAN Zhone Solution: H660GM
Nokia (Alcatel-Lucent): I-240W-Q ZTE: F670
Nokia (Alcatel-Lucent): 7368 ISAM ONT G-140W-C ZTE: F660

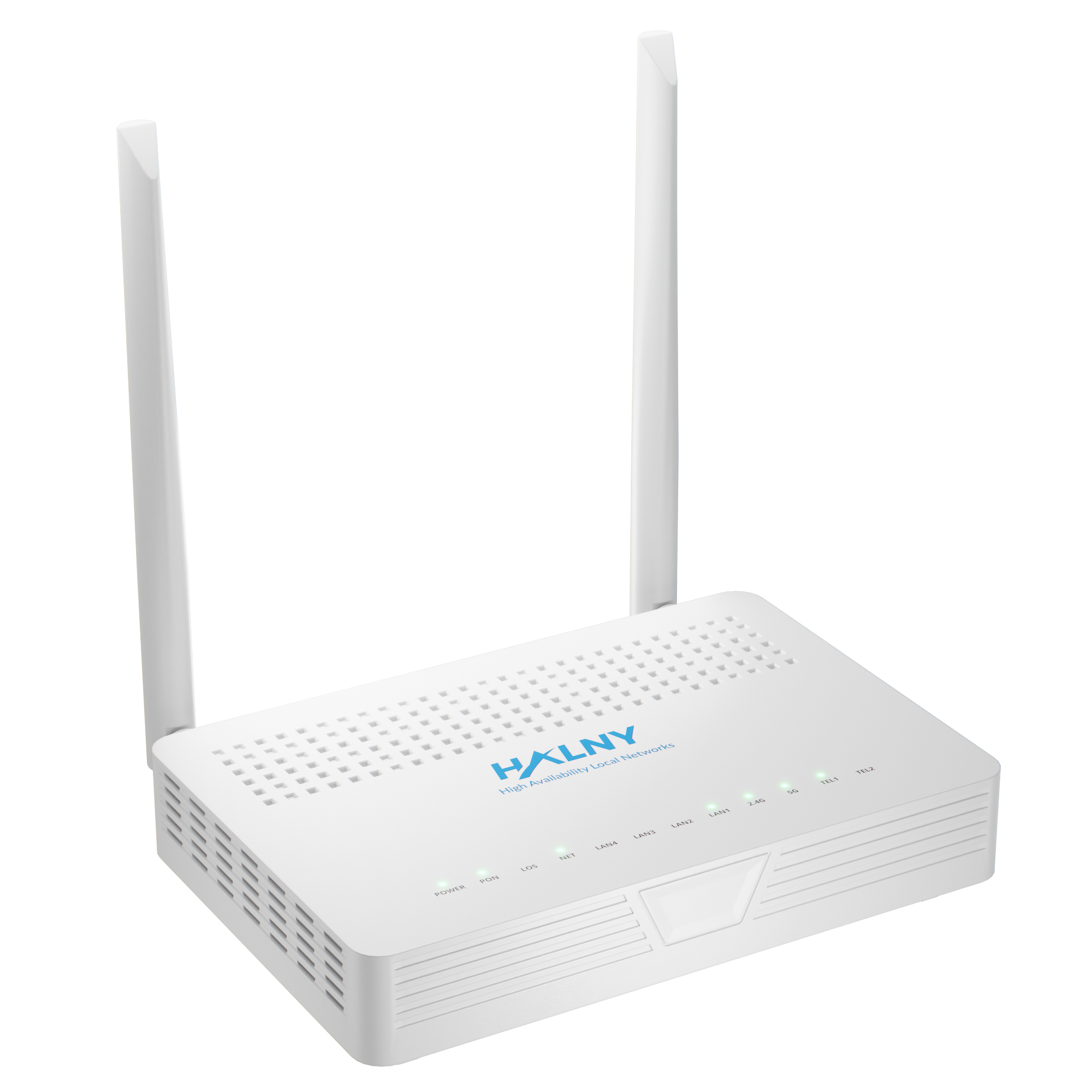

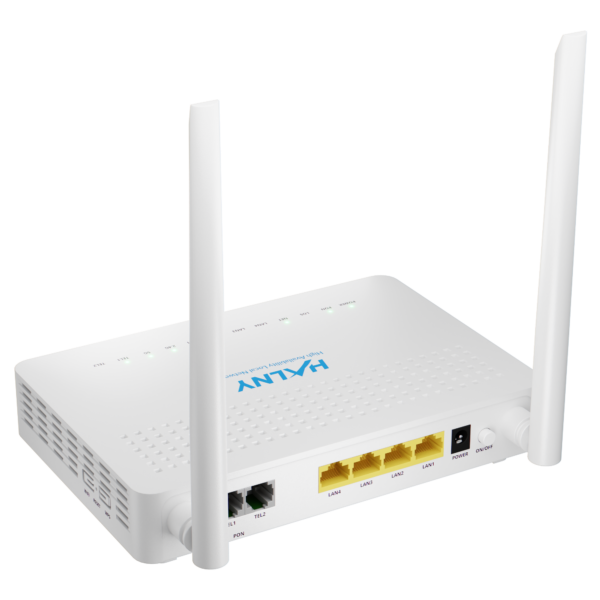

All specifications are subject to change without notice. The above product picture is a sample for reference and may vary. Please check with your supplier for exact offers.
Actual data throughput and WiFi coverage will vary from network conditions and environmental factors, including the volume of network traffic, building material and construction, and network overhead, result in lower actual data throughput and wireless coverage.
Quoted network speeds and bandwidth based on current IEEE specifications. Actual performance may be affected by network and service provider factors, interface type, and other conditions.

ORDERING INFORMATION
HL-4GMV2 /
HL-4GMV2-EU HALNY NETWORKS GPON ONT 4-PORT LAN 10/100/1000, B+ SC/APC, WIFI B/G/N/AC 2.4GHZ/5GHZ N:2X2 300M, AC:2X2 867M WAVE2, 2XPOTS, Router/Bridge, with European Power Adapter
HL-4GMV2-US HALNY NETWORKS GPON ONT 4-PORT LAN 10/100/1000, B+ SC/APC, WIFI B/G/N/AC 2.4GHZ/5GHZ N:2X2 300M, AC:2X2 867M WAVE2, 2XPOTS, Router/Bridge, with North America Power Adapter
HL-4GMV2-UK HALNY NETWORKS GPON ONT 4-PORT LAN 10/100/1000, B+ SC/APC, WIFI B/G/N/AC 2.4GHZ/5GHZ N:2X2 300M, AC:2X2 867M WAVE2, 2XPOTS, Router/Bridge, with United Kingdom Power Adapter
HL-4GMV2-NOPS HALNY NETWORKS GPON ONT 4-PORT LAN 10/100/1000, B+ SC/APC, WIFI B/G/N/AC 2.4GHZ/5GHZ N:2X2 300M, AC:2X2 867M WAVE2, 2XPOTS, Router/Bridge, without Power Adapter
Please contact sales for detailed order information
