PRODUCT DESCRIPTION
GPON Optical Network Termination products are designed for operators and service providers who seek advantage from the expanded capacity of a fiber access network.

HL-4G2 is a GPON ONT that acts as GPON Home Gateway Unit and is designed to provide affordable access to FTTH networks. The products use a single fiber to connect individual houses and businesses to the network for broadband services up to gigabit speeds.

All products within the GPON family comply with current ITU-T standards for gigabit passive optical networks (GPONs). The solution is designed to optimize the deployment and roll-out of the service provider. HL-4G2 design offer multi-interoperability with several OLT vendors. The ONT/ONU products are tested and have proven interoperability with most major GPON OLT Vendors.

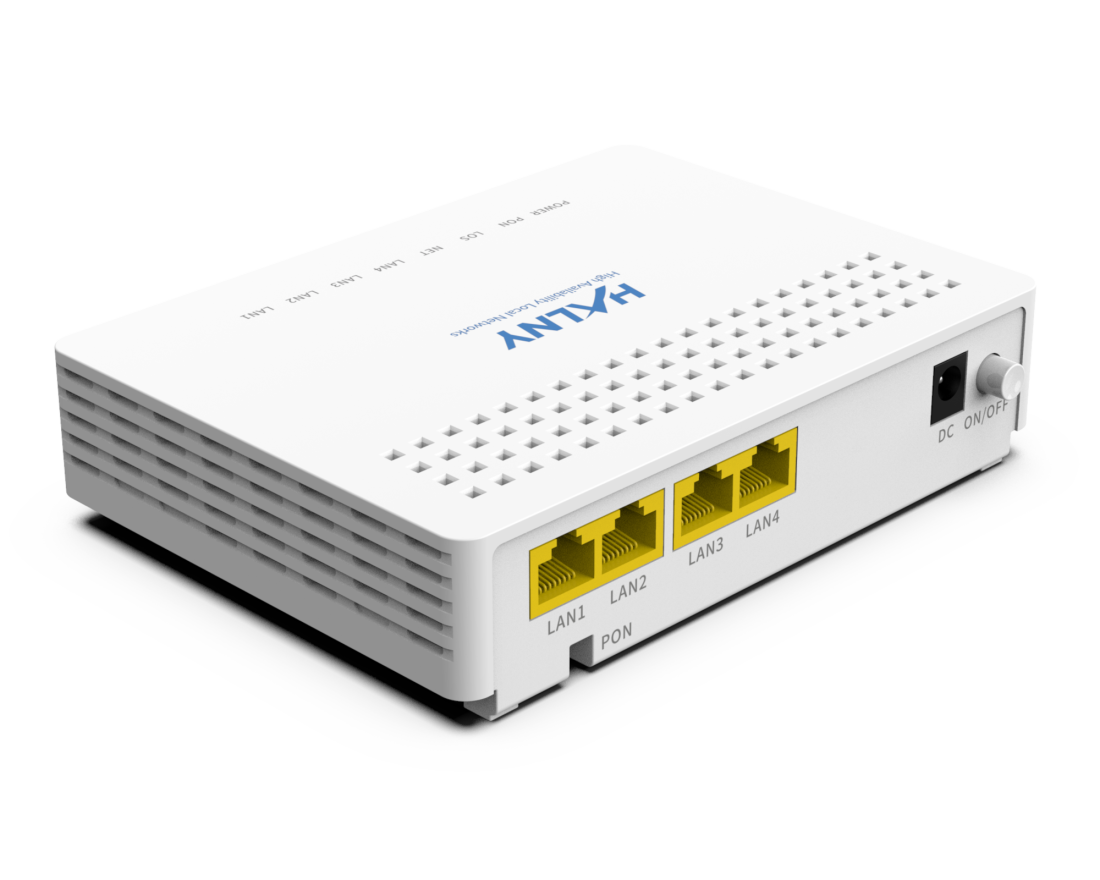

HALNy HL-4G2 provides one GPON port (SC/APC type), four Gigabit Ethernet ports. All units have Layer 3 (HGU* / Router / NAT) and Layer 2 support.

HALNy specializes in cost-effective designs, and works closely with service providers to improve their business case through a comprehensive range of standard products, supporting the industry’s common demands. HALNy also provides custom designs and services to meet unique customer needs.

The network interface is compliant to ITU-T G.984.5 to provide 2.5 Gb/s downstream and 1.25 Gb/s upstream. LAN interface allow to provide Gigabit service.

*- fully supported in the future

HARDWARE SPECIFICATION
WAN Port: GPON SC/APC B+ 2.488Gbps Downstream 1.244Gbps Upstream Operating Temp: 0 ~ 45 C
GPON RX Input: -10 ~ -27 dBm Storage Temp: -20 ~ 70 C
GPON TX Output: 0.5 ~ 5 dBm Flash: Hold two software sets, for active and backup ONT firmware

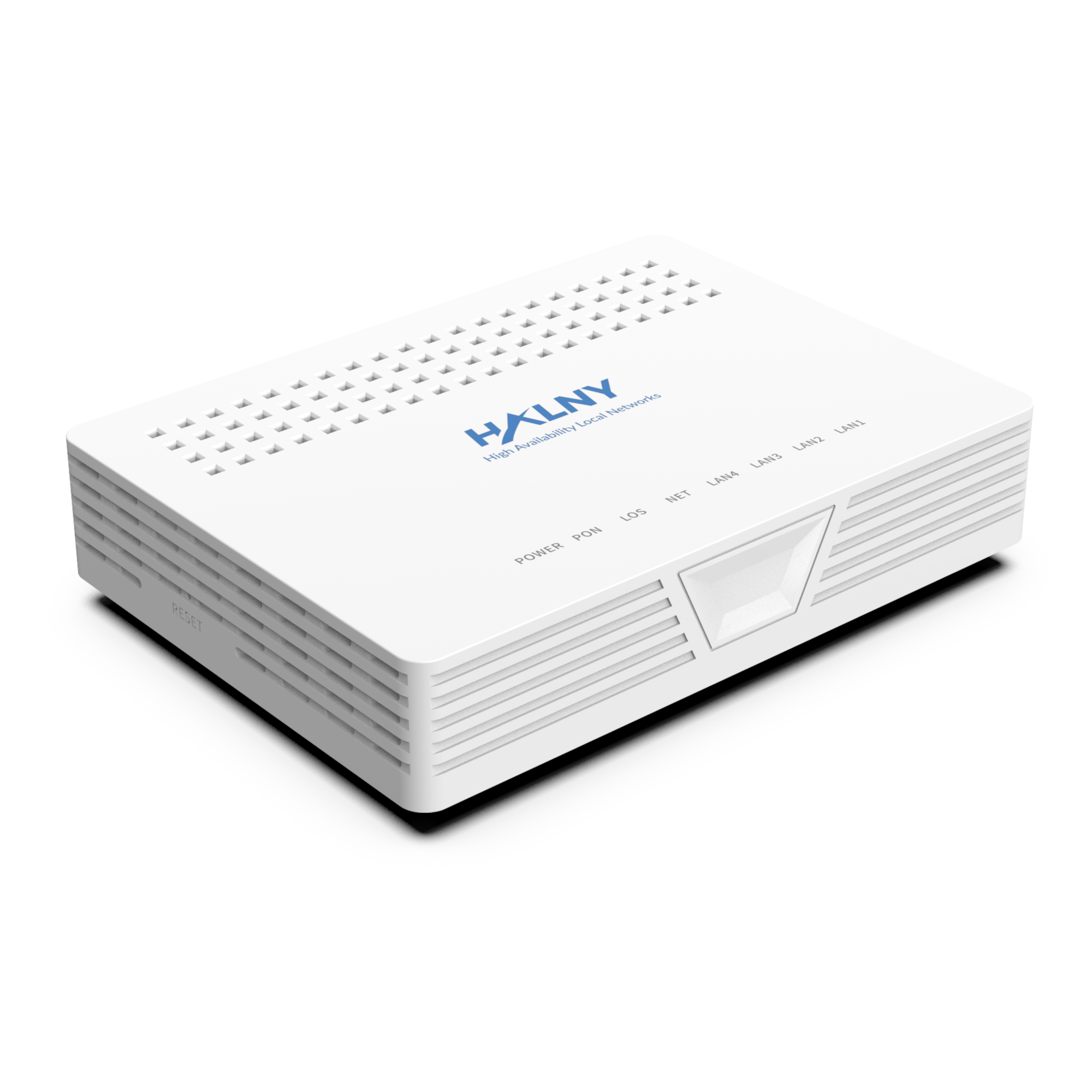

LAN Ports: 4×10/100/1000 Base-T Auto-sensing, auto-detection MDI/ MDI-X LED: POWER, PON, LOS, Internet, LAN1-4
Power Supply: DC +12V 1A (feed via external AC/DC adapter) Buttons: ON/OFF, Reset
Device Dimension: 140*102*34mm (W*D*H)
GENERAL PRODUCT FEATURE
GPON: ITU-T G.984.x and G.988 L3: ONT can works as Residential Gateway (Home Gateway Unit: HGU*) and in Bridge (SFU)
* – fully supported in the future
OMCI G.984.4 PPPoE Client
AES decryption NAT and PAT
Support for FEC (Forrward Error Correction) in both direction DHCP Server/Client/Relay
Dying Gasp / Power Off notification IGMP Proxy
Dynamic Bandwidth Allocation VPN Pass-through
Support for Multicast GEM UPnP
L2: 802.1D Bridge Port Forrwarding
VLAN 802.1Q with 802.1p CoS IPv4/IPv6
IGMP Snooping v/1v2/v3 Provisioning: Easy to use provisioning for all services including PPPoE login, IPTV, Port Forrwarding, Logins etc
Jumbo Frame 2K on GPON WAN DOCSIS like provisioning over GPON/EPON
Rate-Limit (Traffic Limitation) TR-069
Managment: WEB SNMP
Remote Syslog OMCI
OMCI RestAPI / JSON

INTEROPERABILITY TEST REPORTS
ADTRAN DZS NOKIA (ALCATEL-LUCENT) ZTE
CISCO/ALTICE LAN FIBERHOME RAISECOM ZYXEL
CALIX HUAWEI ZHONE
We do our best to ensure interoperability works not matter of OLT software or hardware version. For details verification please check our knowledge base or contact with us on support@halny.com

ALTERNATIVE
This ONT can be used as alternative to below ONTs
Processing…
Huawei: HG8240H Raisecom: HT803-N-07
ZTE: F600 F620 DASAN Zhone Solution: H640G H660G
Ordering Information
HL-4G2 /
HL-4G2-EU HALNY NETWORKS GPON ONT 4-PORT LAN 10/100/1000, B+ SC/APC, Router/Bridge, with European Power Adapter
HL-4G2-US HALNY NETWORKS GPON ONT 4-PORT LAN 10/100/1000, B+ SC/APC, Router/Bridge, with North America Power Adapter
HL-4G2-UK HALNY NETWORKS GPON ONT 4-PORT LAN 10/100/1000, B+ SC/APC, Router/Bridge, with United Kingdom Power Adapter
HL-4G2-NOPS HALNY NETWORKS GPON ONT 4-PORT LAN 10/100/1000, B+ SC/APC, Router/Bridge, without Power Adapter
Please contact sales for detailed order information
