Description
PRODUCT DESCRIPTION
GPON Optical Network Termination products are designed for operators and service providers who seek advantage from the expanded capacity of a fiber access network.

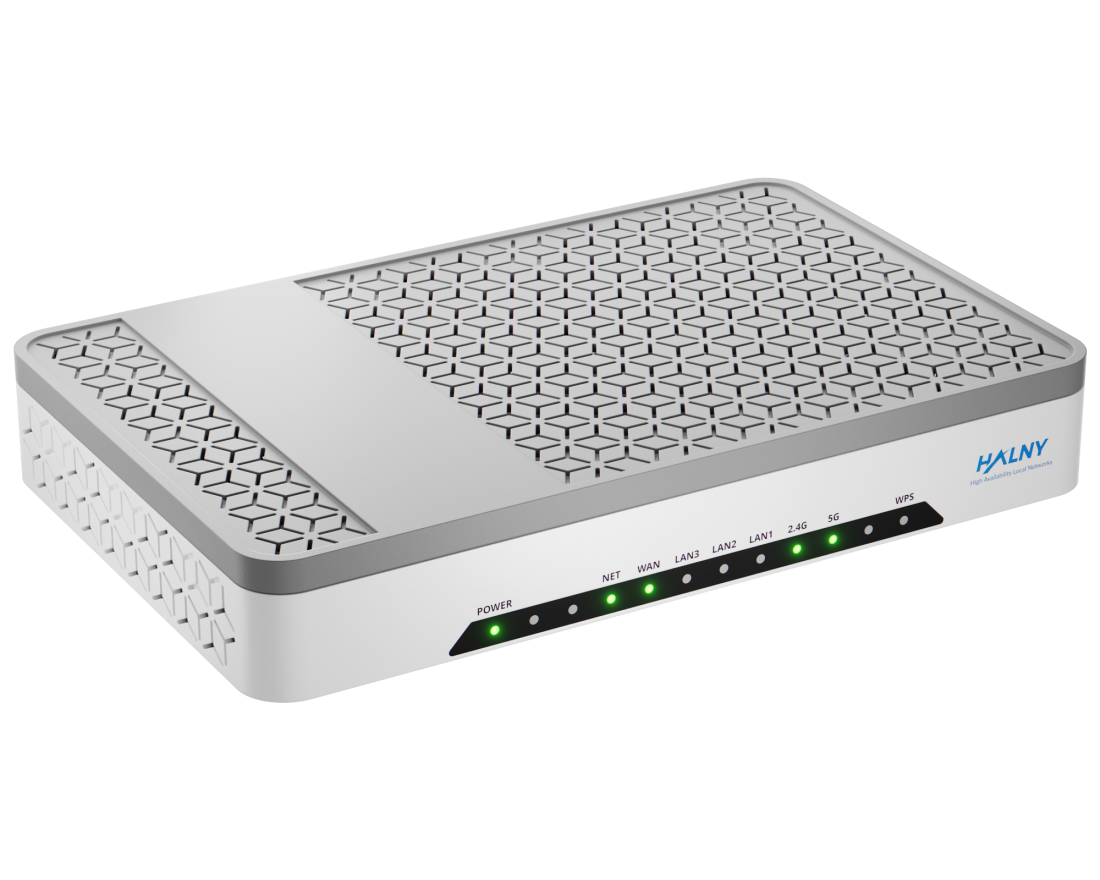

HL-4BX3V-F is a Premium GPON ONT that acts as GPON Home Gateway Unit and is designed to provide affordable access to FTTH networks. The products use a single fiber to connect individual houses and businesses to the network for broadband services up to gigabit speeds.
All products within the GPON family comply with current ITU-T standards for gigabit passive optical networks (GPONs). The solution is designed to optimize the deployment and roll-out of the service provider. HL-4BX3V-F design guarantees multi-interoperability with number of OLT vendors. The ONT/ONU products are tested and have proven interoperability with most major GPON OLT Vendors.
HALNy HL-4BX3V-F provides one GPON port, one 2.5Gigabit Ethernet port, three Gigabit Ethernet ports, WIFI 6 3000AX (2.4G and 5G) Wireless interface with internal antennas and one Voice FXS ports. This gives possibility to support full triple play services for high speed Internet access, IPTV and voice.
The flexible product design enables a variety of product features and available interfaces. All units have Layer 3 and Layer 2 support.
HALNy specializes in cost-effective designs, and works closely with service providers to improve their business case through a comprehensive range of standard products, supporting the industry’s common demands. HALNy also provides custom designs and services to meet unique customer needs.
The network interface is compliant to ITU-T G.984.5 to provide 2.5 Gb/s downstream and 1.25 Gb/s upstream. LAN interface allow to provide Gigabit service.
HARDWARE SPECIFICATION
WAN Port: GPON SC/APC B+ 2.488Gbps Downstream 1.244Gbps Upstream Maximum Power Consumption:
GPON RX Input: -10 ~ -27 dBm Operating Temp: 0 ~ 45 C
GPON TX Output: 0.5 ~ 5 dBm Storage Temp: -10 ~ 60 C
LAN Ports: 1x2500Base-T (RJ45) Auto-sensing,
4×10/100/1000 Base-T (RJ45)
Auto-sensing, auto-detection MDI/ MDI-X Flash: Holds two software sets, for active and backup ONT firmware
Wireless: 2T3R AX3000 LED: POWER, PON, LOS, Internet, LAN1-4, TEL, WI-FI 2.4G ,WI-FI 5G, WPS
2.4Ghz and 5Ghz MU-MIMO Buttons: ON/OFF, Reset, WPS, WLAN
Antenna Internal Device Dimension: 225*142*46mm (W*D*H)
Phone: 1 FXS RJ11
GENERAL PRODUCT FEATURE
GPON: ITU-T G.984.x and G.988 L3: ONT can works as Residential Gateway (Home Gateway Unit: HGU)
OMCI G.984.4 LAN port can be used as WAN
AES decryption NAT and PAT
Support for FEC (Forrward Error Correction) in both direction DHCP Server/Client/Relay
Dying Gasp / Power Off notification IGMP Proxy
DBA Dynamic Bandwidth Allocation VPN Pass-through
Support for Multicast GEM UPnP
L2: 802.1D Bridge Port Forrwarding
Rate-Limit (Traffic Limitation on WAN per CoS) PPPoE Client
VLAN 802.1Q with 802.1p CoS IPv4/IPv6
IGMP Snooping v/1v2/v3 Provisioning: Easy to use provisioning for all services including PPPoE login, IPTV, Port Forrwarding, Logins etc
Jumbo Frame 2K on GPON WAN DOCSIS like provisioning over GPON/EPON
Managment: WEB TR-069 CWMP
Remote Syslog SNMP
OMCI OMCI
VoIP: SIP RTP Wireless: WPA/WPA2 Personal
DTMF 4xSSID
FAX AX3000 802.11ax
G.711-A/U, G.723, G.726 160MHz
WPS
EasyMesh EasyMesh Controller R2
EasyMesh Agent R2
