Description
PRODUCT DESCRIPTION
XGSPON Optical Network Termination products are designed for operators and service providers who seek advantage from the expanded capacity of a fiber access network.

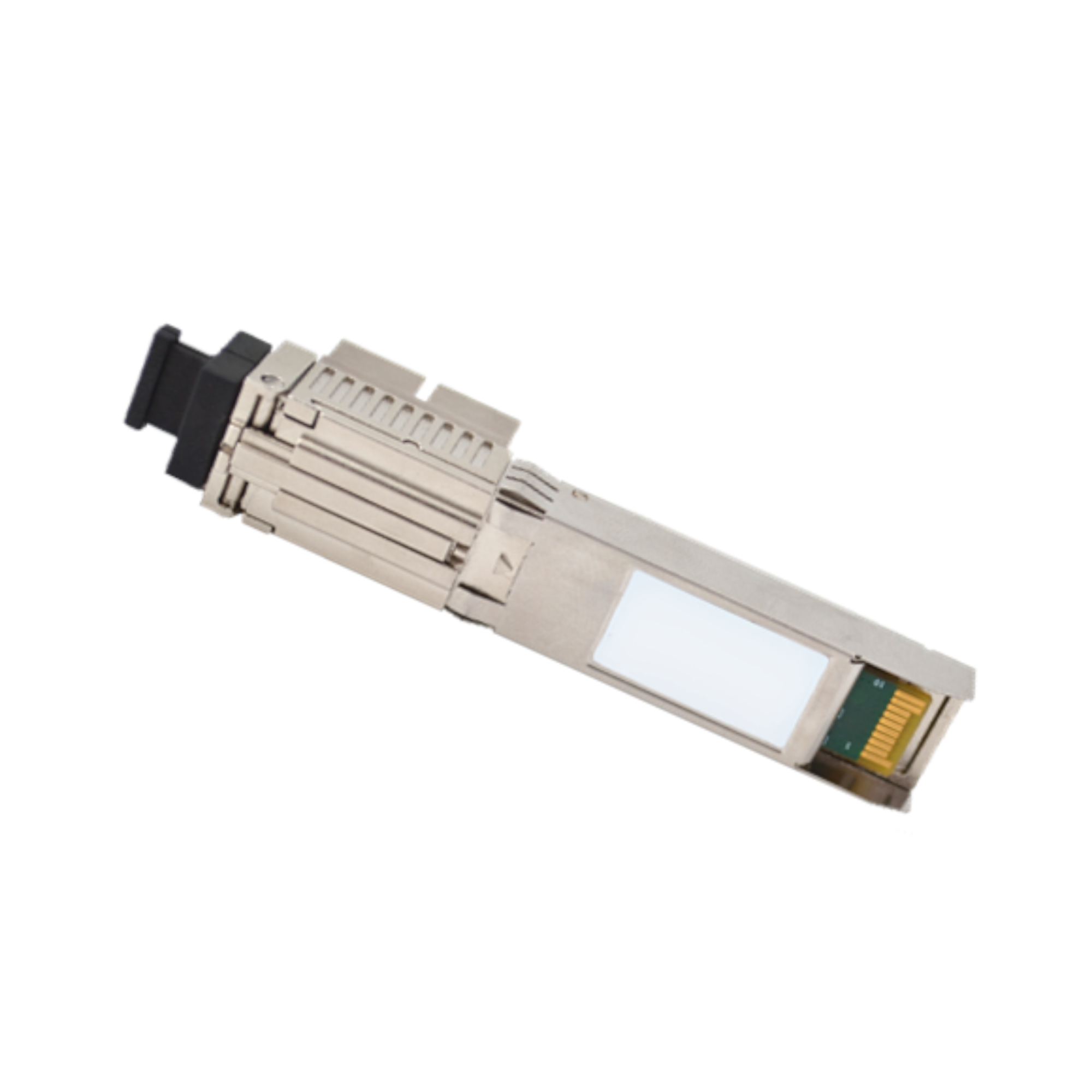

HLX-SFPX is a XGSPON ONT that acts as XGSPON Demarcation Device and is designed to provide affordable access to FTTH networks for Business and Residential use. HLX-SFPX design enable operators to use CPE or other network device with SFP+ port as ONT.
All products within the XGSPON family are compliant to current ITU-T standards for 10Gbit passive optical networks (XGSPON). The solution is designed to optimize the deployment and roll-out of the service provider. The products use a single fiber to connect individual homes and businesses to the network for broadband services up to 9.953Gb speeds.
The flexible product design enables a variety of product features and available interfaces. All units have Layer 2 functionality by default. This includes advanced support for L2 VLANs, L2 QoS and Multicast IGMP.
The ONT/ONU products are tested and have proven interoperability with most major XGSPON OLT Vendors.
HALNy specializes in cost-effective designs, and works closely with service providers to improve their business case through a comprehensive range of standard products, supporting the industry’s common demands. HALNy also provides custom designs and services to meet unique customer needs.
The network interface is compliant to ITU-T G.984.5 to provide 9.953Gb/s downstream and 9.953Gb/s upstream. LAN interface allow to provide 10Gigabit service.
HARDWARE SPECIFICATION
WAN Port: XGSPON Class N2 Port (SC/APC)
Rx sensitivity -27dBm / Rx overload -8dBm
Tx power +4 ~ +9dBm Storage Temp.: -40~85oC
WAN Port Speed: XGSPON: 9.953Gbps/9.953Gbpc (DS/US) Operating Humidity: 5~70 % (non-condensing)
LAN Port: SFP+ form-factor,
SFI/SGMII supporting 10G/2.5G/1G speeds (*) Power Voltage: According to SFP+ MSA
Flash Memory: 1Gb Power Consumption: According to SFP+ MSA
Operating Temp.: 0 ~ 70 oC or -40 to +85C (for I-Temp module)
GENERAL PRODUCT FEATURE
XGS-PON: ITU-T G.9807.1 Compliant Multicast: IGMP Snooping
ITU-T G.988 Compliant (OMCI Model) L3: IP HOST for remote managemen
Dying gasp L2: IEEE 802.1D Bridging
Dynamic Bandwidth Allocation IEEE 802.1Q and IEEE 802.1P compliant
Downstream and upstream data Security (AES Encryption) VLAN Translation
Forward Error Correction (FEC VLAN Filter
Qos: Ingress / Egress Rate Limiting Access | Trunk | Native port
Packet Classification based on COS, DSCP Storm-Control
QinQ (transparent and begin/end of tunnel)
