Description
PRODUCT DESCRIPTION
GPON Optical Network Termination products are designed for operators and service providers who seek advantage from the expanded capacity of a fiber access network.

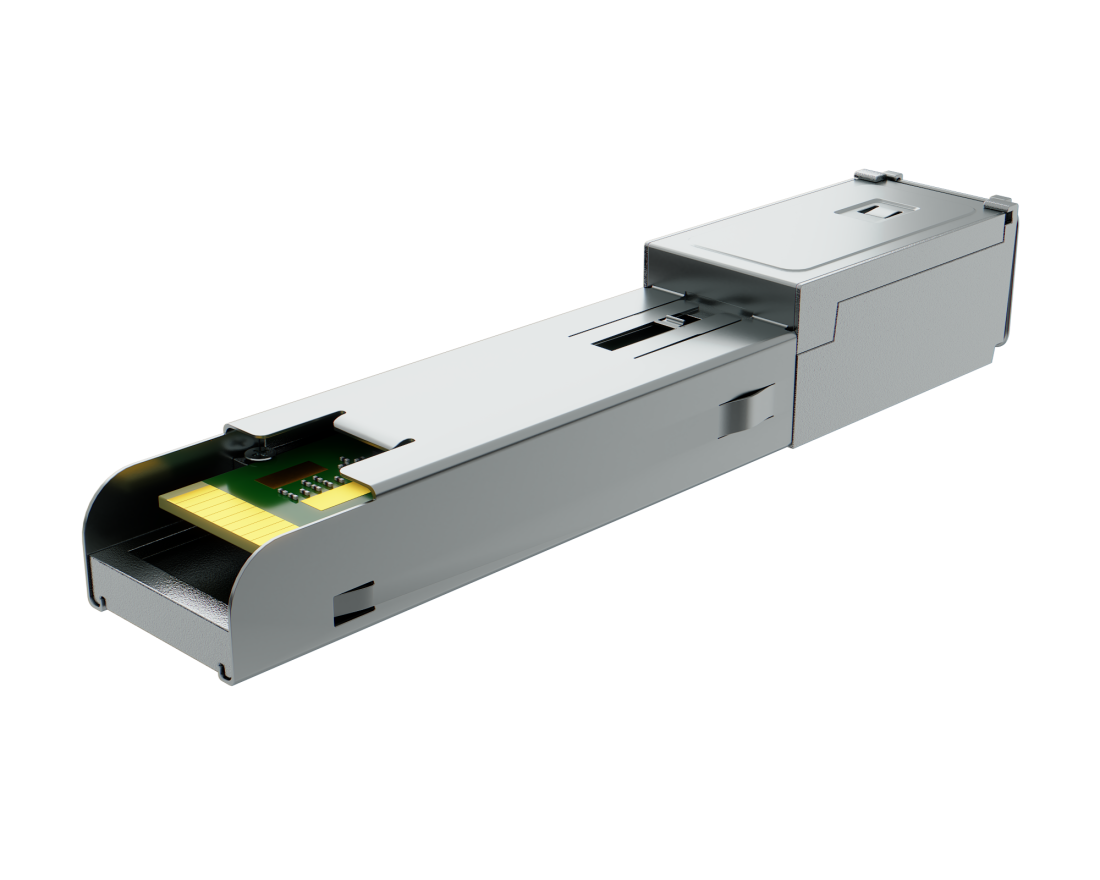

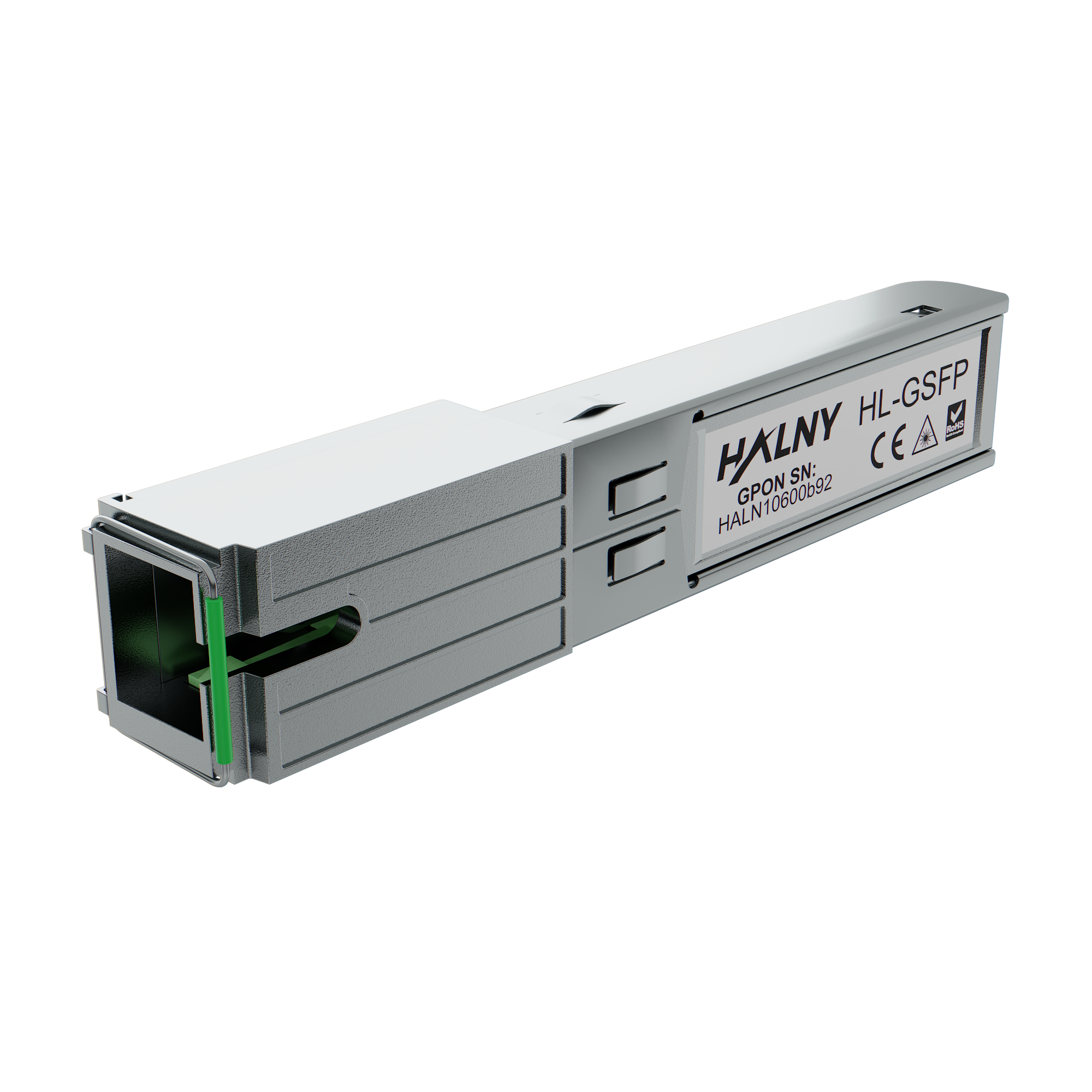

HL-GSFP is a GPON ONT hidden in SFP transceiver and called GPON STICK. HL-GSFP can act as GPON Demarcation Device and is designed to provide affordable access to FTTH networks for Business and Residential use. The products use a single fiber to connect individual houses and businesses to the network for broadband services up to gigabit speeds.
It can be used in the any switch (L2/L3), router, CPE or any other device which has SFP port. This gives possibility to connect to GPON network devices like IP DSLAM, CCTV cameras, mobile backhaul devices, WiMAX base stations and other.
GPON STICK can operate at extended temperature range (-40 ~ 85℃ ) so it can be used in locations where restricted environmental conditions are important.
All products within the GPON family comply with current ITU-T standards for gigabit passive optical networks (GPONs). The network interface is compliant with ITU-T G.984.5 to provide 2.5 Gb/s downstream and 1.25 Gb/s upstream. LAN interface provides Gigabit service. The solution is designed to optimize the deployment and roll-out of the service provider. The ONT/ONU products are tested and have proven interoperability with most major GPON OLT Vendors.
The flexible product design enables a variety of product features and available interfaces. All units have Layer 2 functionality by default. This includes advanced support for L2 VLAN’s, L2 QoS and Multicast IGMP.
HALNy specializes in cost-effective designs, and works closely with service providers to improve their business case through a comprehensive range of standard products, supporting the industry’s common demands. HALNy also provides custom designs and services to meet unique customer needs.
HARDWARE SPECIFICATION
WAN Port: GPON SC/APC B+
2.488Gbps Downstream
1.244Gbps Upstream Operating Temp: -40 ~ 75C
GPON RX Input: -10 ~ -27 dBm Storage Temp -40 ~ 85C
GPON TX Output: 0.5 ~ 5 dBm Flash: Hold two software sets, for active and backup ONT firmware
LAN Ports: SFP port slot, SGMII 1Gbit or 2.5Gbit (for HL-GSFP) Device Dimension: 85*15*13mm (W*D*H)
Power Supply: according to SFP MSA
Maximum Power Consumption: 3.3W
GENERAL PRODUCT FEATURE
GPON: ITU-T G.984.x and G.988 L3: ip-host for out-of-band managment
OMCI G.984.4 L2: 802.1D Bridge
AES decryption VLAN 802.1Q with 802.1p CoS
Support for FEC (Forrward Error Correction) in both direction IGMP Snooping v/1v2/v3
Dying Gasp / Power Off notification QinQ and VLAN translation
Dynamic Bandwidth Allocation Jumbo Frame 2K on GPON WAN
Support for Multicast GEM QoS with rate-limit
Managment: Remote Syslog Provisioning: Easy to use provisioning for all services
OMCI SNMP
SNMP OMCI
GPON INTEROPERABILITY TEST REPORTS
ADTRAN FIBERHOME RAISECOM ZYXEL
CISCO/ALTICE LAN HUAWEI ZHONE
DZS NOKIA (ALCATEL-LUCENT) ZTE
We do our best to ensure interoperability works not matter of OLT software or hardware version. For details verification please check our knowledge base or contact with us on support@halny.com
ALTERNATIVE
This ONT can be used as alternative to below ONTs
Huawei: MA5671A
DASAN: H640SFP
DASAN: H650SFP
Mikrotik: SFPONU S-GPON-ONU
