Description

PRODUCT DESCRIPTION

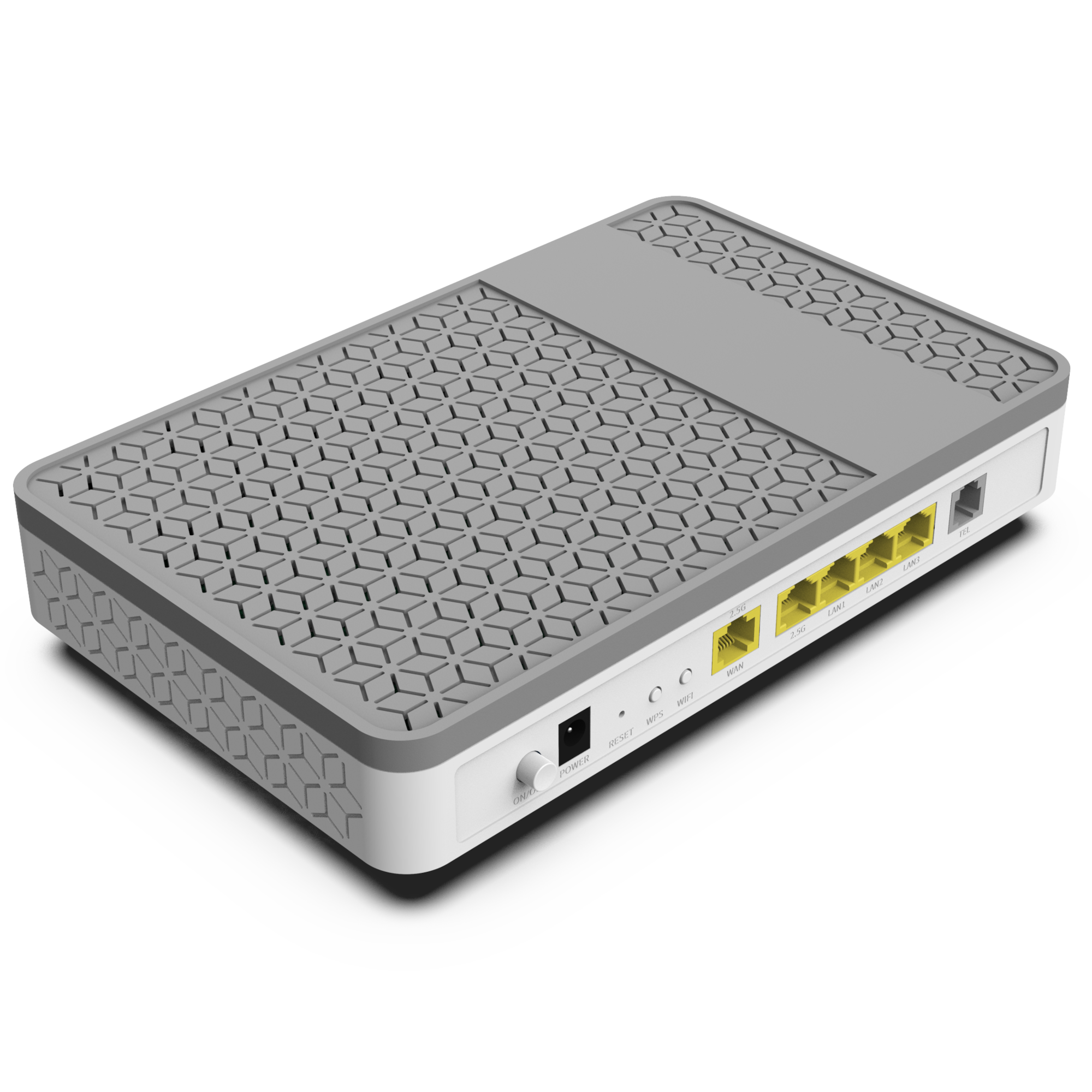

HLE-4BX3V-F is a Home Gateway Unit that can act as CPE (customer-premises equipment) or Ethernet Router with Acces Point feature. The products use a Gigabit Ethernet WAN (100/1000/2500) to connect individual houses and businesses to the network for broadband services up to gigabit speeds. This Router supports controller and gent roles for EasyMesh standard.

HALNy Networks HLE-4BX3V-F provides three Gigabit Ethernet ports (3×10/100/1000), one FXS port and Dual-Band (2.4G and 5G) wireless interface with internal antennas 5dB.

HALNy specializes in cost-effective designs, and works closely with service providers to improve their business case through a comprehensive range of standard products, supporting the industry’s common demands. HALNy also provides custom designs and services to meet unique customer needs.

HARDWARE SPECIFICATION
WAN Port 1×1000/2500 Base-T (RJ-45) Auto-sensing, auto-detection MDI/ MDI-X Maximum Power Consumption: 10,4W
LAN Ports: 3×10/100/1000 Base-T (RJ-45) Auto-sensing, auto-detection MDI/ MDI-X Operating Temp: 0 ~ 45 C
Wireless: 5Ghz AX3000 MU-MIMO Storage Temp: -10 ~ 60 C
2.4Ghz 2T2R AX3000 MU-MIMO Flash: Hold two software sets, for active and backup router firmware
Internal Dual Band LED: POWER, Internet, WAN, LAN 1-3, WI-FI 2.4G ,WI-FI 5G, WPS, TEL
Antenna Gain 5dBi Buttons: ON/OFF, Reset, WPS, Wi-Fi
Phone: 1xFXS RJ11 Dimensions: 225*142*46mm (W*D*H)
Power Supply: DC +12V 1.5A (feed via external AC/DC adapter)
GENERAL PRODUCT FEATURE
L3: Residential Gateway (Home Gateway Unit: HGU) Provisioning: Easy to use provisioning for all services including PPPoE login, IPTV, Port Forrwarding, Logins etc
DHCP Server/Client/Relay DHCP Auto Provisioning
IGMP Proxy TR-069 / CWMP
VPN Pass-through Wireless: DFS
UPnP 2.4GHz: 3000Mbps – 40Mhz
Port Forrwarding 5Ghz: 3000Mbps – 80Mhz
PPPoE Client WPS
DNS Relay Mesh: Seamless Roaming
NAT and PAT EasyMesh Complaint(AMP v1.0)*
L2: IGMP Snooping v2/v3 Auto configuration
Jumbo Frame 2K Managment: WEB / HTTP
802.1D Bridge Two users: admin / useradmin
VLAN 802.1Q with 802.1p CoS
ORDERING INFORMATION
HLE-4BX3V-F /
HLE-4BX3V-F-EU HALNY NETWORKS ETHERNET ROUTER, 1XWAN 100/1000/2500, 3-PORT LAN 10/100/1000, WIFI B/G/N/AC/AX 2.4GHZ/5GHZ AX:2X3 AX3000, 1XPOTS, Router/Bridge, with European Power Adapter
HLE-4BX3V-F-US HALNY NETWORKS ETHERNET ROUTER, 1XWAN 100/1000/2500, 3-PORT LAN 10/100/1000, WIFI B/G/N/AC/AX 2.4GHZ/5GHZ AX:2X3 AX3000, 1XPOTS, Router/Bridge, with North America Power Adapter
HLE-4BX3V-F-UK HALNY NETWORKS ETHERNET ROUTER, 1XWAN 100/1000/2500, 3-PORT LAN 10/100/1000, WIFI B/G/N/AC/AX 2.4GHZ/5GHZ AX:2X3 AX3000, 1XPOTS, Router/Bridge, with United Kingdom Power Adapter
HLE-4BX3V-F-NOPS HALNY NETWORKS ETHERNET ROUTER, 1XWAN 100/1000/2500, 3-PORT LAN 10/100/1000, WIFI B/G/N/AC/AX 2.4GHZ/5GHZ AX:2X3 AX3000, 1XPOTS, Router/Bridge, without Power Adapter
HL-FIBER-TRAY HALNY TRAY FOR ONT/CPE
Please contact sales for detailed order information
